The East German Wieger STG series
A missing link in the evolution of the Kalashnikov. Originally intended for export sales with the 5.56x45 STG-940 series, the design proved favorable and was expanded to 5.45x39 with the 950 series and 7.62x39 with the 970 series. The Wieger series had a bright future until the Berlin Wall fell.
A 3 year passion project of mine, I've painstakingly reverse engineered the proprietary components from high quality photos and documents. Modern manufacturing has allowed for internal design improvements while keeping the external look as close as possible to the originals.
The handguards, pistol grip & stock are made of nylon 12 polymer with a rubber buttpad. The handguards & stock feature internal reinforcement ribs for increased durability and rigidity. Just like the originals, the pistol grip has an internal storage compartment for a cleaning kit and oil bottle. Handguard retainer & locking bar are made to fit around the JMAC Customs GBC-13 gas block, made from 4130 steel and fully heat treated. Steel components black oxide coated.
Kit includes:
* Due to the varying dimensions of different AK barrels, this product may not fit all barrels and is intended to be used on a barrel with 14.82-14.83mm journal *
Repro bayonet compatible flash hiders and custom barrels in the works!
Required parts: JMAC Customs GBC-13 Gas Block (w/ minor modification) & Smooth Gas Tube (Saiga/VEPR style)
Polymer Stock fits standard fixed stock AK rear trunnions
Gunsmithing required for assembly
Details about the gen 2 improvements here
Wieger STG Clone Build Guide
Wieger STG Clone Parts List
Wieger STG Model Designations
Pricing:
A missing link in the evolution of the Kalashnikov. Originally intended for export sales with the 5.56x45 STG-940 series, the design proved favorable and was expanded to 5.45x39 with the 950 series and 7.62x39 with the 970 series. The Wieger series had a bright future until the Berlin Wall fell.
A 3 year passion project of mine, I've painstakingly reverse engineered the proprietary components from high quality photos and documents. Modern manufacturing has allowed for internal design improvements while keeping the external look as close as possible to the originals.
The handguards, pistol grip & stock are made of nylon 12 polymer with a rubber buttpad. The handguards & stock feature internal reinforcement ribs for increased durability and rigidity. Just like the originals, the pistol grip has an internal storage compartment for a cleaning kit and oil bottle. Handguard retainer & locking bar are made to fit around the JMAC Customs GBC-13 gas block, made from 4130 steel and fully heat treated. Steel components black oxide coated.
Kit includes:
- Handguards
- Pistol Grip
- Pistol Grip Stamped Steel Floorplate
- Pistol Grip Screw & Lock Washer
- Handguard Retainer
- Handguard Retainer Locking Bar/Sling Loop
- Handguard Retainer Spring
- (Optional) Saiga Gas Tube
- (Optional) Polymer Stock Assembly
- Polymer Stock Body
- Polymer Spacer
- Rubber Buttpad
- Stainless Steel Locking Plate
- Sling Swivel Assembly
- 2x Buttpad Screws
- 2x Trunnion Stock Screws

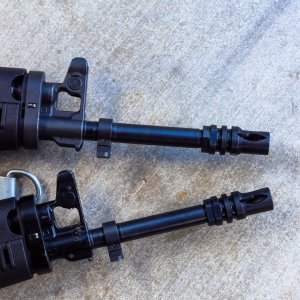

- (Optional) Flash Hider Compensator
- Flash Hider Compensator
- Jam Nut

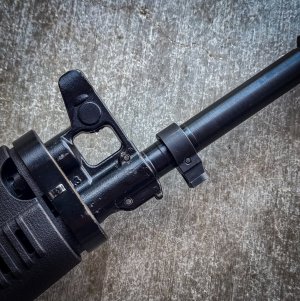

- (Optional) Bayonet Lug Mount
- Bayonet Lug
- 3mm Retainer Pin

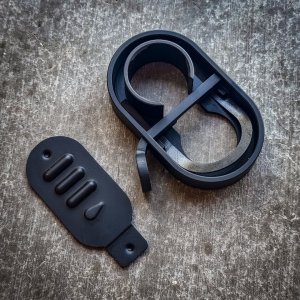

- (Optional) Support Block
- (Optional) Alignment Jig

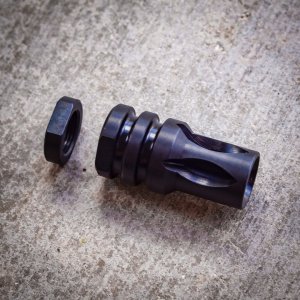

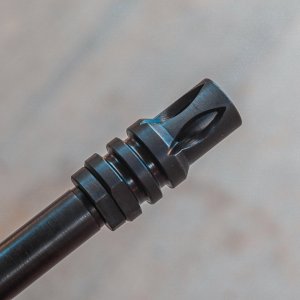

- Flash Hider Compensator Specs:
- 2 Port Slots @ 10 & 12 o'clock
- Material: 4140 Steel
- Finish: Black Nitride
- Length: 1.7"
- Weight: 2.0 Oz
- Thread Pitch: M14x1 LH
- Flash Hider Wrench Flats: 19 MM or 3/4"
- Jam Nut Wrench Flats: 17 MM
* Due to the varying dimensions of different AK barrels, this product may not fit all barrels and is intended to be used on a barrel with 14.82-14.83mm journal *
Repro bayonet compatible flash hiders and custom barrels in the works!
Required parts: JMAC Customs GBC-13 Gas Block (w/ minor modification) & Smooth Gas Tube (Saiga/VEPR style)
Polymer Stock fits standard fixed stock AK rear trunnions
Gunsmithing required for assembly
Details about the gen 2 improvements here
Wieger STG Clone Build Guide
Wieger STG Clone Parts List
Wieger STG Model Designations
Pricing:
- Gen 2 Front End + Pistol Grip Kit: $270
- Add Saiga Gas Tube +$20
- Add Polymer Stock Assembly +$200
- Gen 1 Front End + Pistol Grip Kit: $250 ( Discounted while supplies last)
- Add Saiga Gas Tube +$20
- Add Polymer Stock Assembly +$200
- Separate Polymer Stock Assembly: $200
- Separate Pistol Grip: $50
- Flash Hider Compensator: $105
- Bayonet Lug Mount: $45
- Add Support Block & Alignment Jig +$3
